MO15 Machined Square Canopy

Machined Square Canopy

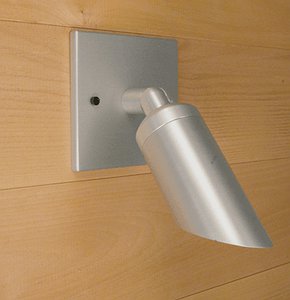

Precision machined square canopy for mounting lighting fixtures on a 4/0 junction box. Can be used for wall or ceiling mounted accent lighting applications.

  • Choice of 1/2” NPS threaded or 7/8” non-threaded mount hole(s).
  • Mount hole has an O-ring groove that, in conjunction with the O-ring supplied with all Vision3 lighting fixtures, creates a water tight fixture mount.
  • Comes with universal mounting ring and stainless steel hardware for adjusting orientation of canopy.


    Machined 6061-T6 aluminum, C36000 brass, or 304 stainless steel.

    Fixture Mount:

    Available with 1/2” NPS threaded or Ø7/8” non-threaded fixture mount hole. O-ring groove allows for sealing between fixture and mounting canopy (All Vision3 flood fixtures come with a high temperature, black Viton O-ring on the knuckle for this purpose).


    Canopy comes mounted to a steel universal mounting ring for ease of mounting and adjustment on an industry standard round junction box (box, box hardware, and gasket not supplied).


    TGIC thermo set polyester powder coat paint available in 14 standard colors. On aluminum model, finish is applied over a corrosion resistant, hexavalent chromium free, RoHS compliant coating. Aluminum model available in one additional metal finish: Clear Anodized. Brass model available in three additional metal finishes: Natural, Polished, and Aged. Stainless steel model available in three additional metal finishes: Natural, Polished, and Brushed.

  • Downloads

    Type Name File size
    MO15 Specification Sheets 421.1 KB
    MO15 Installation Instructions 356.9 KB
  • Photos
