SL7 LED Dual Sign Light

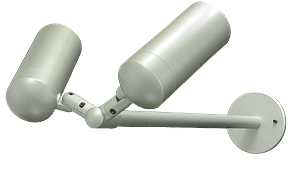

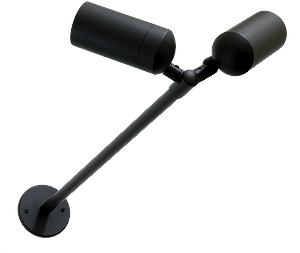

LED Dual Sign Light

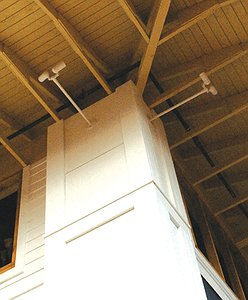

Precision machined dual LED lighting fixture with 100-277V input integral drivers. Can be used for wet or dry location sign lighting, canopy lighting, and accent lighting applications.

  • Thick walled cap and optimized high temperature silicone O-ring placement prevents leaking.
  • Patented ‘double-taper’ locking knuckle that locks and stays locked.
  • Thick walled cap allows for more threads and larger set screw to prevent stripping.
  • Stem lengths from 6” to 42”, three bend styles, and four canopy styles.
  • LED module features field replaceable optics for changing beam patterns.
  • LED driver utilizes patented LEDSense® thermal management to keep LED's running at the optimum temperature.

  • WRITTEN SPECIFICATIONS

    Material:

    Machined 6061-T6 aluminum with 18-8 stainless steel hardware.

    Head:

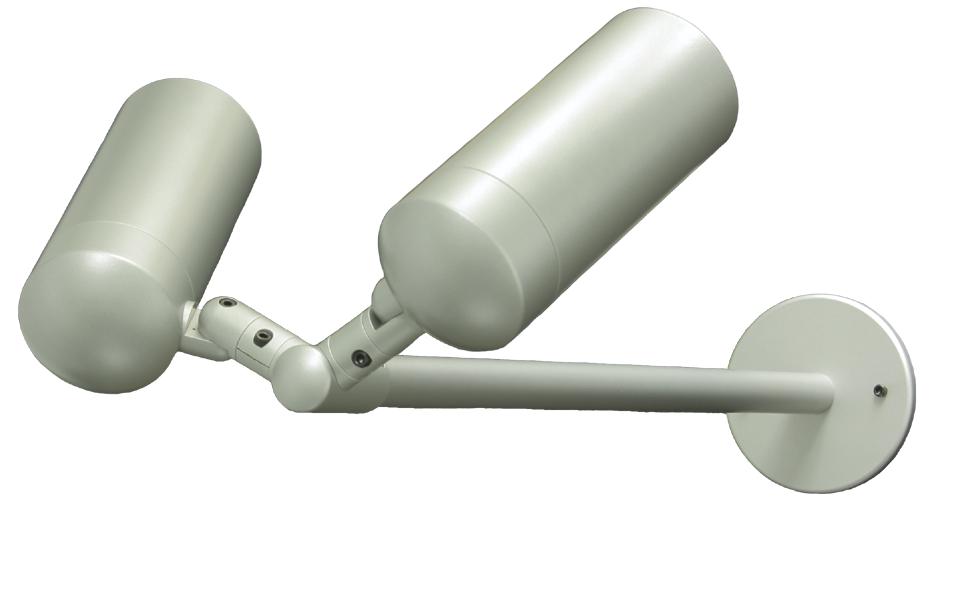

    Machined heads come in two styles: Side Mount and Rear Mount. (See illustration on Specification Sheet for aiming capabilities of each head.)

    Stem:

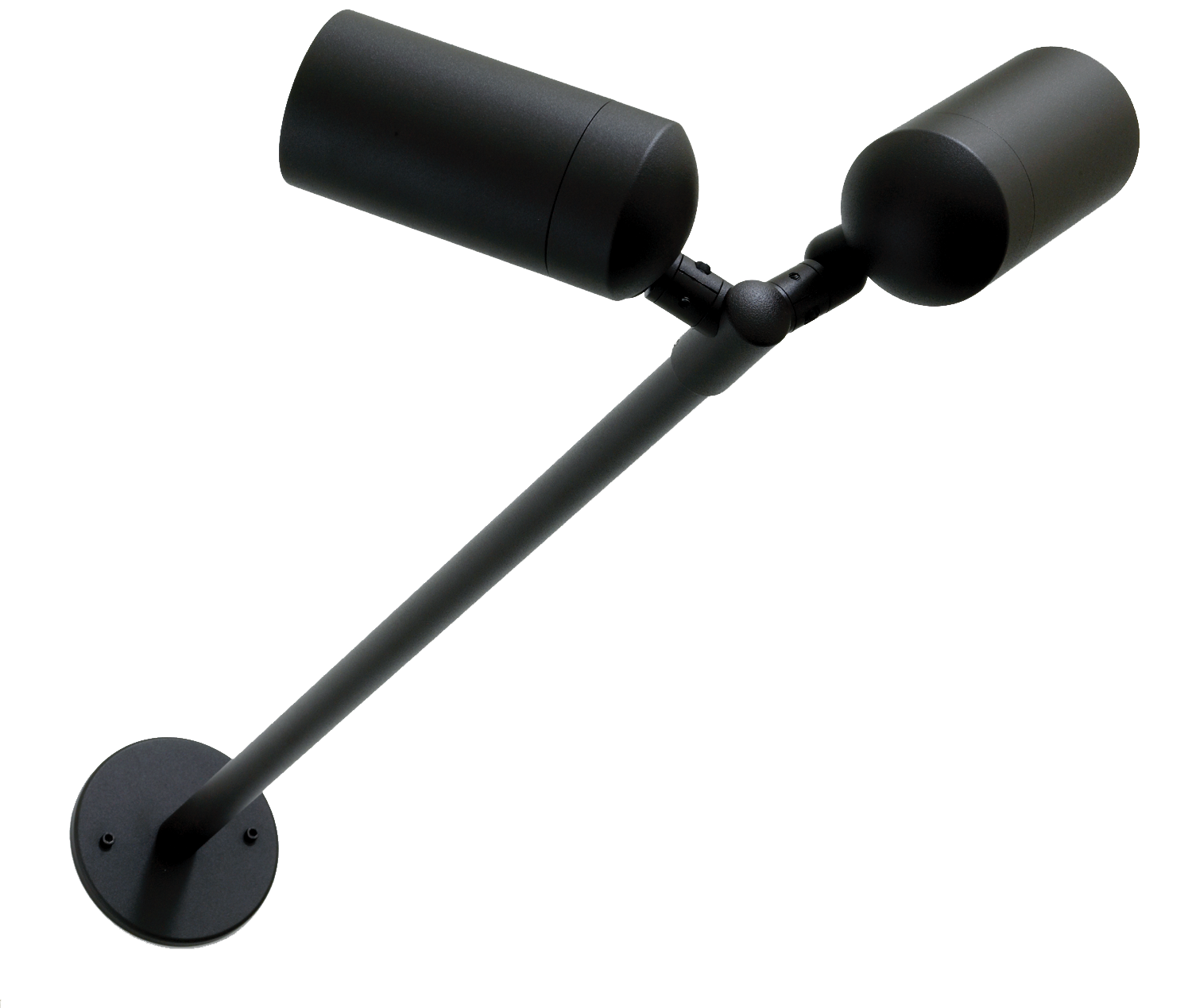

    1” diameter machined stem comes in various stem lengths and three stem styles: Straight, 180° U-Bend, and 90° Gooseneck. (See illustration on Specification Sheet for calculating overall projection from wall for each stem style.)

    Knuckle:

    A Rotate and Lock knuckle (protected under U.S. Patents #6,966,679, #7,108,405 and #7,458,552) mounts each head and allows for adjustability. Double taper design allows fixture to hold position during aiming and ensures a solid lock when tightened. LED models have molded silicone wire seals at knuckles to prevent water entry around wires.

    Cap:

    Machined caps come in four styles, lock in place with one 18-8 stainless steel set screw, and are sealed to the body with a high temperature silicone O-ring. Regress Lens caps have drain holes for water drainage from top of lens if mounted in the up position. All caps accept up to three internal accessories, held in place by a stainless steel clip.

    Mount Canopy:

    Available with the following mount options: MO3 (Machined Round Canopy), MO15 (Machined Square Canopy), and MO12 & MO13 (Surface Mount Powered Canopies). Stem is permanently attached to mount canopy using a 304 stainless steel threaded nipple to prevent loosening or sagging. See mount specification sheets for more information. (Mount canopy must be mounted to an appropriate wall or junction box, in such a manner that is capable of holding the weight and torque created by the fixture. Junction box and hardware not included).

    Finish:

    TGIC thermo set polyester powder coat paint available in 14 standard colors. Finish is applied over a corrosion resistant, hexavalent chromium free, RoHS compliant coating. Also available in one additional metal finish: Clear Anodized.

    Lens:

    Each cap contains a 1/8” thick tempered, clear lens, secured with a high temperature, UV curing, silicone adhesive.

    LED’s:

    Dual LED’s with 100 to 277 VAC (50/60 Hz) input and 20W max. power each (17W@120V, 20W@277V). Each LED features: integral driver, up to 1280 lumen output, up to 75 lm/W efficacy, four different beam patterns (15º, 23º, 35º & 51º), field changeable optics, push button selection of 4 light levels (100%, 80%, 55% & 18%), 120- 277V universal 0-10V dimming available at three highest (100%, 80%, 55%) light level settings, 120V phase dimming at highest (100%) light level setting (see Dimmer Compatibility List), an L70 of 60,000 hrs., and patented LEDSense® thermal management to ensure reliability and lumen maintenance. Note: thermal management system may cause power input and light output to vary slightly depending on fixture material, orientation, lens accessories, mounting, and ambient temperature.

    Certification:

    CSA tested & certified to US and Canadian safety standards for wet location wall mount use per UL1598 (Must be mounted in such a manner to properly support the fixture).

  • Downloads

    Type Name File size
    SL7 Specification Sheets 521.6 KB
    SL7 Installation Instructions 578.2 KB
    17/20W LED Technical Data Sheets 897.4 KB
    17/20W LED IES Files 4.9 KB
    17/20W LED Dimmer Compatibility 63.2 KB
