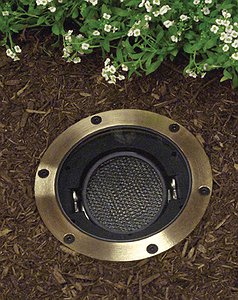

IG4 MR16 Remote Sealed Ingrade

MR16 Remote Sealed Ingrade

Precision cast and machined lighting fixture for MR16 halogen lamps or integral LED lamp module with driver. Designed for in ground installation and landscape up lighting applications. Rugged cast bronze construction is suitable for the most corrosive of environments.

  • IP68 rated. Optional pour collar is suitable for concrete pour applications. Drive-over rated.
  • Faceplates available in three metal choices and eight styles with tamper-proof, captive screws.
  • Replaceable tempered 1/4" thick glass lens and silicone lens gasket.
  • Exclusive ‘Joystick Aiming’ option that provides hot-aiming convenience.
  • LED modules are field replaceable and feature replaceable lenses.
  • LED drivers utilize dynamic transformer recognition to simplify installation and patented LEDSense® thermal management to keep LED running at the optimum temperature.
  • WRITTEN SPECIFICATIONS

    Housing:

    Cast C84400 bronze housing. Optional concrete pour collar available in material and finish to match the faceplate.

    Socket:

    GY-6.35 porcelain socket with 600V, 250°C, PTFE coated 18 ga leads.

    Lens:

    Tempered, 1/4” thick, stepped lens allows for flush mounting. Optional Slip Reduction Lens increases wet lens friction by over 50%. Molded, high temperature, silicone lens gasket compresses around lens between faceplate and housing for a water tight seal. Both lens and seal are removable for cleaning or replacement.

    Faceplate:

    Available in cast or machined C84400 bronze or machined 316 stainless steel. Attaches using six 18-8 stainless steel captive screws. Optional Glare Shield, Half Dome, Marker Light, and Rock Guard faceplates available in cast C84400 bronze and allow 360° of rotational alignment. Optional Flanged faceplate available, in machined brass or 316 stainless steel, for core drill applications.

    Finish:

    Available in 14 standard TGIC thermo set polyester powder coat paint colors. Cast Bronze faceplates available in two additional finishes: Natural and Aged. Machined Brass faceplates available in three additional finishes: Natural, Aged, and Polished. Machined Stainless faceplates available in three additional finishes: Natural, Brushed, and Polished. Optional pour collar finished to match faceplate.

    Wire Entry:

    PVDF liquid tight strain relief fitting, silicon O-ring body seal and Viton form seal. 14-2 direct burial cable is spliced to two 600V, 250°C, PTFE coated 18 ga leads. Potting creates an anti-syphon barrier. Snap plug connectors used for connecting power to lamp leads on the aiming module.

    Lamp Module & Aiming:

    MR16 Halogen: Standard Aiming Lamp Module allows for 22° vertical and 360° horizontal aiming. Joystick Aiming Lamp Module allows for one tool ‘hot aiming’ with 18° vertical and 360° horizontal adjustment without having to touch hot brackets or lamp. Optional accessory holder accepts up to two lens options.

    Integral & Retrofit LED: LED lamp module uses black anodized aluminum bracketry to ensure maximum heat transfer away from the LED to ensure long life while allowing for one tool ‘hot aiming’ with 18° vertical and 360° horizontal adjustment without having to touch hot brackets or lamp. Integral accessory holder accepts up to two lens options.

    Lamps:

    MR16 Halogen: 12V bi-pin up to 42W (see Certification heading for limitations).

    Integral LED: 12-24V AC/DC 6W (400lm) or 12V AC/DC 10W (700lm) LED options include integral driver with High/Low switch for 35W/20W (6W) or 50W/35W (10W) halogen equivalent outputs. LED Modules are field replaceable and feature replaceable lenses, an L70 > 60,000 hrs., dynamic transformer recognition, phase dimming (see Transformer and Dimmer Compatibility List), and patented LEDSense® thermal management.

    Retrofit MR16 LED: 12V 7.5W (600lm) bi-pin retrofit Soraa™ MR16 LED with specially engineered heat sink mount to ensure proper heat transfer to housing. Note: Retrofit LED will overheat without supplied heat sink mount.

    Certification:

    IP68 rated to a depth of 3 ft. for 48 hours. Drive over durable for up to 5300 lb vehicles, at up to 10 mph (‘BE’ or ‘BE-PC’ housings and ‘STD’, ‘ML1’, ‘ML2’, or ‘ML4’ faceplates only. Other housing and faceplate options are not suitable for drive over applications). CSA tested & certified to US and Canadian safety standards for the following application(s):
    Wet location landscape use (UL1838):
    IG4 - LED or 42W Max. MR16 Halogen lamp.
    Only one lens option can be used with 37W & 42W lamps. 42W lamps can not be used with a color filter. IG4 is not rated for use in Canada with halogen lamp options.
