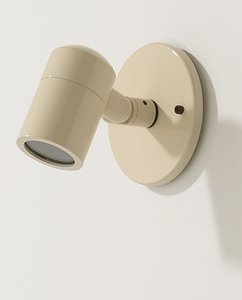

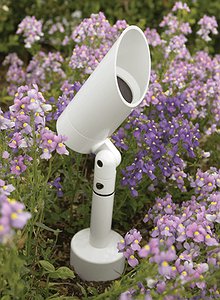

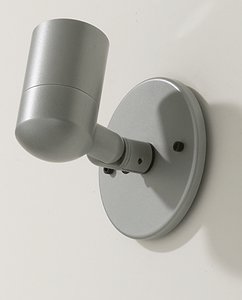

Precision machined lighting fixture for MR16 halogen lamps or integral LED lamp module with driver. Can be used for ground mounted landscape up lighting, tree mounted down lighting, and wall or ceiling mount applications.
Precision machined from aluminum or brass. All stainless-steel hardware.
Removable cap is available in four cutoff styles. Tempered borosilicate glass lens is factory sealed to cap using high temperature silicone adhesive. Also available with ‘Flush Lens’ option.
Up to 3 lens or shielding options can be specified (see spec. sheet for limitations).
MR16 halogen lamp up to 50W; 10W LED module with integral driver and a High/Low switch for selection of 35 Watt or 20-Watt halogen equivalent output; 12.5W LED module with integral driver and a High/Low switch for selection of 50W/35W halogen equivalent output;12V 7.5W retrofit MR16 LED lamp with heat sink mount.
14 standard powder coat finishes, clear anodized aluminum finish, & 3 brass finishes.
Standard K1 double-taper knuckle gives positive lock for 180º vertical aiming and prevents undesired fixture movement. Optional K2 Rotate & Lock knuckle adds a full 360º of lockable, rotational aiming. K1 and K2 knuckle option designs are protected under U.S. Patents #6,966,679, #7,108,405 and #7,458,552.
CSA tested and certified to US and Canadian safety standards for use in wet locations.
Name | Size | |
---|---|---|
Installation Instructions | 505.0 KB | |
Specification Sheets | 524.1 KB | |
MR16H IES Files | 5.1 KB | |
10W LED IES Files | 11.4 KB | |
12.5W LED IES Files | 12.2 KB | |
7.5W Retrofit LED Dimmer Compatibility | 351.7 KB | |
7.5W Retrofit LED 10° Beam IES Files | 2.4 KB | |
7.5W Retrofit LED 25° Beam IES Files | 41.3 KB | |
7.5W Retrofit LED 36° Beam IES Files | 2.1 KB | |
7.5W Retrofit LED Manufacturer's Technical Data Sheets | 1.4 MB |
