MO19 Surface Mount with Cap Option

Surface Mount with Cap Option

Surface mount with wiring compartment for ground mounted, tree mounted, or general surface mounted lighting applications. Can be used with low voltage lighting fixtures.

  • Mounting cap and cup creates wiring compartment for low voltage connections.
  • Hard anodized aluminum base is corrosion resistant and allows for easy installation and adjustment with slotted hole design.
  • Single set screw cap option allows for quicker installation and adjustment by using the same hex wrench size as Vision3 locking knuckles.

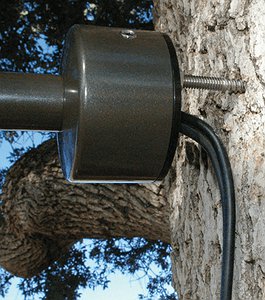

  • Tree mount option comes with stainless steel hardware and provides for secure mounting to trees while allowing for tree growth over the screws.
  • WRITTEN SPECIFICATIONS

    Certification:

    CSA tested and certified to US and Canadian safety standards for use in wet locations.

    Material:

    Precision machined from aluminum or brass. All stainless steel hardware.

    Caps:

    Two cap styles accept lighting fixtures with 1/2” NPS threads and provide for a low voltage connection.

    Mounting:

    Base contains two fixed and two slotted mounting holes. The tree mount version includes two 3” stainless steel hanger bolts with nuts. A hanger bolt driver is available as an option (order separately).

    Finishes:

    14 standard powder coat finishes, clear anodized aluminum finish & 3 brass finishes are available.

  • Downloads

    Type Name File size
    MO19 Specification Sheets 421.0 KB
    MO19 Installation Instructions 347.7 KB
