MO12 Surface Mount Powered Canopy

Surface Mount Powered Canopy

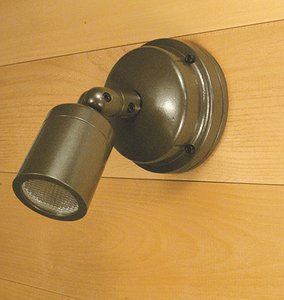

Precision cast and machined surface mount powered canopy for low voltage and line voltage lighting fixtures. Can be used for wall or ceiling mounted lighting applications.

  • Thick walled metal housing prevents ‘sag’ of fixture mounted to it.
  • Choice of 1/2” NPS threaded or 7/8” non-threaded mount hole.
  • Gaskets on base and cover and O-ring groove at mount hole provides a water tight housing.
  • Cover alignment pins and captive cover screws for quick installation and easy maintenance.
  • Can be mounted over a 4/0 junction box or used as a surface mount box.
  • WRITTEN SPECIFICATIONS

    Material:

    Precision cast and machined from aluminum or bronze. Stainless steel hardware.

    Mounting:

    Base fits hole pattern on standard 4/0 junction box or can be surface mounted in place of a junction box. Mount holes available as 7/8” diameter slip fit or threaded 1/2” NPS. Each hole has an O-ring groove to fit the O-ring supplied with all Vision3 fixtures for a water tight mount.

    Seals:

    High temperature foam silicone gaskets between cover and base, and base and wall, prevent leaking between the canopy cover, canopy base and wall surfaces.

    Electrical:

    Can be used as surface mount junction box or specified with integral 75VA electronic transformer operating at 11.6V output and choice of 120V, 230V, or 277V input.

    Finishes:

    14 standard powder coat finishes, clear anodized aluminum finish and 3 bronze metal finishes available.

    Certification:

    CSA tested and certified to US and Canadian safety standards for use in wet locations.
