MO10 Tree Mount Canopy

Tree Mount Canopy

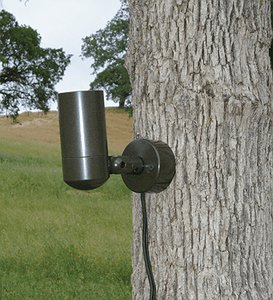

Tree mount canopy for screw/nail on tree mounted lighting applications. Can be used with low voltage lighting fixtures for surface mount installations. Large size canopy can accommodate wiring connection using waterproof wire nuts.

  • Accepts lighting fixtures with 1/2” NPS thread mounts.
  • Easy feed-thru of 12-2 low voltage cable.
  • WRITTEN SPECIFICATIONS

    Material:

    Precision machined from aluminum, brass, or stainless steel. Hardware by others.

    Canopy:

    Canopy has 7/8” dia. mounting hole to accept fixtures with 1/2” NPS threads. 5/8” wiring hole allows for 12-2 cable feed-thru.

    Finishes:

    14 standard powder coat finishes, clear anodized aluminum finish, 3 brass finishes and 3 stainless steel finishes are available.

    Certification:

    CSA tested and certified to US and Canadian safety standards for use in wet locations.

  • Downloads

    Type Name File size
    MO10 Specification Sheets 335.9 KB
    MO10 Installation Instructions 333.4 KB
  • Photos
