MO8 Tree Mount Strap - Canopy

Tree Mount Strap - Canopy

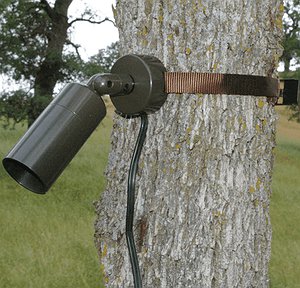

Tree mount canopy with strap for tree mounted lighting applications. Can be used with low voltage lighting fixtures for mounting on trees or posts.

  • Available with up to 3 mounting canopies for multiple lighting fixture installations.
  • Stainless steel, heavy-duty, ratchet allows for easy installation and adjustment.
  • Available in three strap lengths: 48”, 72” and 120”.
  • WRITTEN SPECIFICATIONS

    Canopy:

    Precision machined from aluminum, brass, or stainless steel. Up to 3 mounting canopies can be used. Contact Vision3 regarding weight limitations when specifying multiple canopies on one strap. Canopy has 13/16” mounting hole to accept fixtures with 1/2” NPS threads. 5/8” wiring hole allows for 12-2 cable feed thru.

    Strap:

    Military grade nylon strap is 1” wide, olive green color. Steel hook is powder coated textured bronze finish (BNT) to match buckle. Available in lengths of 48” for 14” diameter trees, 72” for 21” diameter trees and 120” for 36” diameter trees.

    Buckle:

    304 grade stainless steel ratcheting buckle allows for easy installation and adjustment. Easy release mechanism allows for the strap to be adjusted when fixture is being re-lamped. Textured bronze powder coat finish (BNT) is standard.

    Finishes:

    14 standard powder coat finishes, clear anodized aluminum finish, 3 brass finishes and 3 stainless steel finishes are available for the canopy.

    Certification:

    CSA tested and certified to US and Canadian safety standards for use in wet locations.

  • Downloads

    Type Name File size
    MO8 Specification Sheets 365.2 KB
    MO8 Installation Instructions 352.8 KB
