MO2 In Grade Stake Mount

In Grade Stake Mount

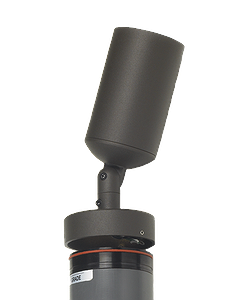

PVC junction housing with precision machined caps for ground mounted landscape up lighting applications. Can be used with low voltage & line voltage flood & accent products from Vision3 Lighting.

  • Machined caps are radiused to shed water.

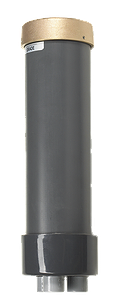

  • In ground junction housing made from corrosion resistant PVC.
  • Stainless steel hardware provides for positive locking & tamper proof design.
  • Fixed stem version allows fixed heights from 3” to 48”.
  • Black anodized collar pressed into PVC housing allows for solid mount and provides for water-tight seal with included O-ring.
  • WRITTEN SPECIFICATIONS

    Material:

    Stake / junction made from corrosion resistant thermoplastic PVC. Caps and stems precision machined from aluminum or brass. All stainless steel hardware.

    Stem:

    Optional machined stems available in lengths from 3”- 48”

    Electrical:

    Three integral 1/2” slip fittings allow for conduit connection, cable entry, and feed through wiring. (Conduit and cable not included).

    Finishes:

    14 standard powder coat finishes, clear anodized aluminum finish, 3 brass finishes and 2 bronze finishes are available.

    Caps:

    Machined caps have 1/2” NPS thread with O-ring groove.

    Seals:

    O-ring groove on cap is designed to accept the O-ring supplied with every Vision3 flood / accent fixture. On Styles S3 and S4, an O-ring seal between the cap and housing and 2 conduit entries on the junction housing creates a water tight installation.

    Certification:

    CSA tested and certified to US and Canadian safety standards for use in wet locations.
