PA1 Path Light

Path Light

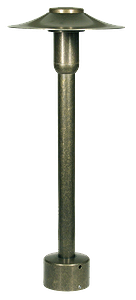

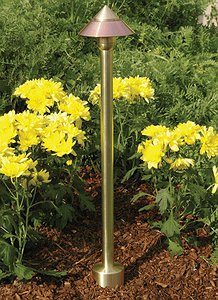

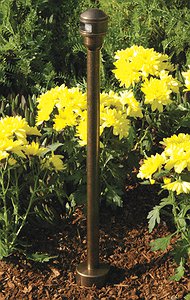

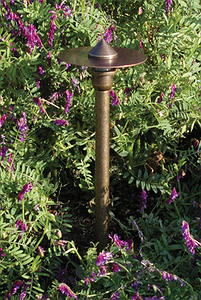

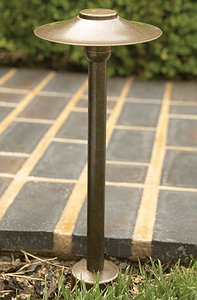

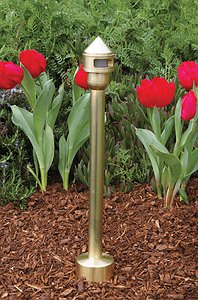

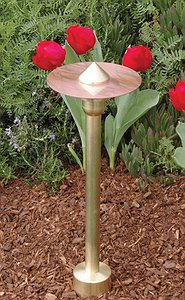

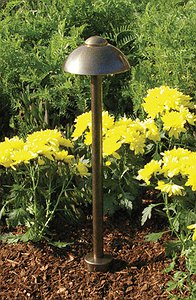

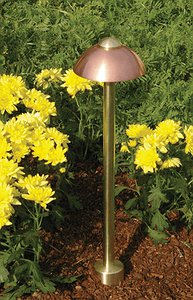

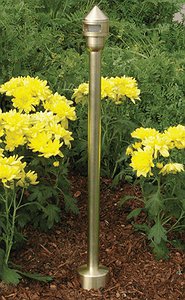

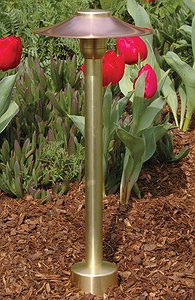

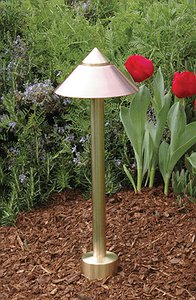

Precision machined lighting fixture with integral LED module and driver or T3 bi-pin LED. Can be used for path or garden lighting applications. Several options available for ground or surface mounting.

  • Available in fixed mounting heights from 6" to 48".
  • Adjustable version allows for range of heights from 3" to 48".
  • Four cap shapes, seven shade styles, and three opening types to choose from.
  • Integral transformer option allows for operation on 120V systems.
  • Integral LED driver utilizes patented LEDSense® thermal management to keep LED running at the optimum temperature.
  • WRITTEN SPECIFICATIONS

    Construction:

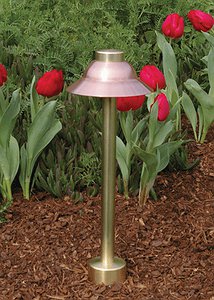

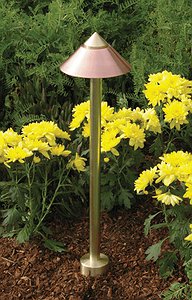

    Aluminum, brass, or stainless steel with 18-8 stainless steel hardware. Also available with copper shade (all other components brass).

    Stem:

    Stems machined from 6061-T6 aluminum, C36000 brass, or 304 stainless steel and are available in lengths of 6”, 12”, 18”, 24”, 30”, 36”, 42” and 48”.

    Finish:

    TGIC thermo set polyester powder coat paint available in 14 standard colors. On aluminum model, finish is applied over a corrosion resistant, hexavalent chromium free, RoHS compliant coating. Aluminum model available in one additional metal finish: Clear Anodized. Brass model available in three additional metal finishes: Natural, Polished, and Aged. Stainless steel model available in three additional metal finishes: Natural, Polished, and Brushed. Copper model available in Natural finish only.

    Lens:

    1/8” wall tempered borosilicate tube, secured to cap with a high temperature, UV curing silicone adhesive. Available with clear or frosted finish.

    Lamp:

    Integral LED: 12 VAC, 4W LED module with integral driver. LED module features patented LEDSense® thermal management, an input voltage range of 9.6 to 14.4 VAC, an L70 of 60,000 hrs., a CRI > 80, and compatibility with magnetic and low load electronic transformers (see Transformer Compatibility List). Note: LED is not dimmable. LED module is not field replaceable.

    T3 Bi-pin LED: 12 VAC/DC, 3W (330lm) T3 LED with an input range of 9 to 15 VAC/DC, a CRI > 80, field replaceable, has a rated life span of 25,000 hrs, dimmable, and compatible with magnetic and low load electronic transformers (see LED specification sheet for transformer and dimmer compatibility information).

    Electrical:

    Supplied standard with 24” of 16-2 cable beyond stem for connection to a remote low voltage power supply. Also available with integral 120V, 60VA low load electronic transformer in certain mount options.

    Certification:

    CSA tested & certified to US and Canadian safety standards for wet location landscape use per UL1838 and UL1598.
