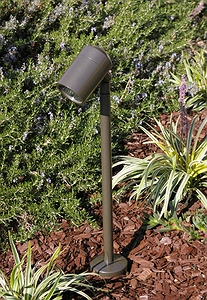

Precision machined LED lighting fixture with 100-277V input Integral Driver LED or COB LED (remote driver required). Can be used for ground mounted landscape lighting or path lighting applications.
Available in machined 6061-T6 aluminum with 18-8 stainless steel hardware.
Machined heads come in two styles: Side Mount and Rear Mount. (See illustration on Specification Sheet for aiming capability of each head style.)
1” diameter machined stem comes in various stem lengths. Maximum allowable stem length depends on mount option (see Specification Sheet). Soil type and installation manner may limit safe stem length further. To prevent fixture from toppling over, these factors must be taken into account when choosing stem length or mount type.
A Rotate and Lock knuckle (protected under U.S. Patents #6,966,679, #7,108,405 and #7,458,552) mounts each head and allows for adjustability. Double taper design allows fixture to hold position during aiming and ensures a solid lock when tightened. Integral LED models have molded silicone wire seals to prevent water entry at knuckles.
Machined caps lock in place with one 18-8 stainless steel set screw, and are sealed to the body with a high temperature silicone O-ring. Regress Lens caps have drain holes for water drainage from top of lens if mounted in the up position. ‘Flush Lens’ cap styles incorporate a stepped lens to reduce the collection of water and debris on the lens. All caps accept up to three internal accessories, held in place by a stainless steel clip.
TGIC thermo set polyester powder coat paint available in 14 standard colors. On aluminum model, finish is applied over a corrosion resistant, hexavalent chromium free, RoHS compliant coating. Also available in one additional metal finish: Clear Anodized.
Tempered, clear lenses, secured to caps with a high temperature, UV curing, silicone adhesive.
Two GY-6.35 porcelain sockets with 600V, 250°C, PTFE coated 18 ga leads.
MR16 Halogen: Two 12V bi-pin lamps up to 50W each.
Integral LED: Two 12-24V AC/DC 6W (400lm) or two 12V AC/DC 10W (700lm) LED modules, each includes integral driver with High/Low switch for 35W/20W (6W) or 50W/35W (10W) halogen equivalent outputs. LED Modules are field replaceable and feature replaceable lenses, an L70 > 60,000 hrs., dynamic transformer recognition, phase dimming (see Transformer and Dimmer Compatibility List), and patented LEDSense® thermal management.
Retrofit MR16 LED: Two 12V 7.5W (600lm) bi-pin retrofit Soraa™ MR16 LED lamps with specially engineered heat sink mounts to ensure proper heat transfer to body. Note: Retrofit LED will overheat without supplied heat sink mount.
MO1-S3 mount options include a 75VA, 11.6V output, electronic transformer in 120V, 230V, or 277V input. Max. combined lamp wattage can not exceed 75W when using MO1-S3 mount options. All other mount options supplied with 24” of 16-2 cable beyond stem for connection to a remote low voltage power supply.
CSA tested & certified to US and Canadian safety standards for wet location landscape use per UL1838 (except for 230V option). Must be mounted in such a manner to properly support the fixture.
Name | File size |
---|---|
PA12 Specification Sheets | 607.7 KB |
PA12 Installation Instructions | 463.7 KB |
17/20W LED Technical Data Sheets | 897.4 KB |
17/20W LED Dimmer Compatibility | 63.2 KB |
17/20W LED IES Files | 4.9 KB |
