PA3 Step Light, Core Drill

Step Light, Core Drill

Precision machined aluminum, brass, or stainless steel LED step light fixture with 12V Integral Driver COB LED light engine. Modular industry standard components allow for simple field replacement and future upgrades. Wet or dry location capable and certified for landscape applications, the PA3 Step Light is perfect for all residential, commercial, retail, and hospitality uses.

  • Industry standard COB LED components and wiring connectors used to simplify maintenance and future upgrades.
  • Field replaceable optics, COB, and driver.
  • MR16 halogen, retro-fit MR16 LED, and amber turtle safe LED lamp options also available.

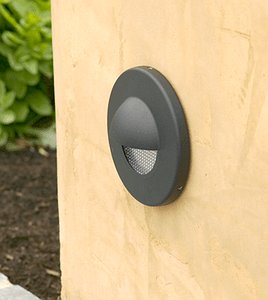

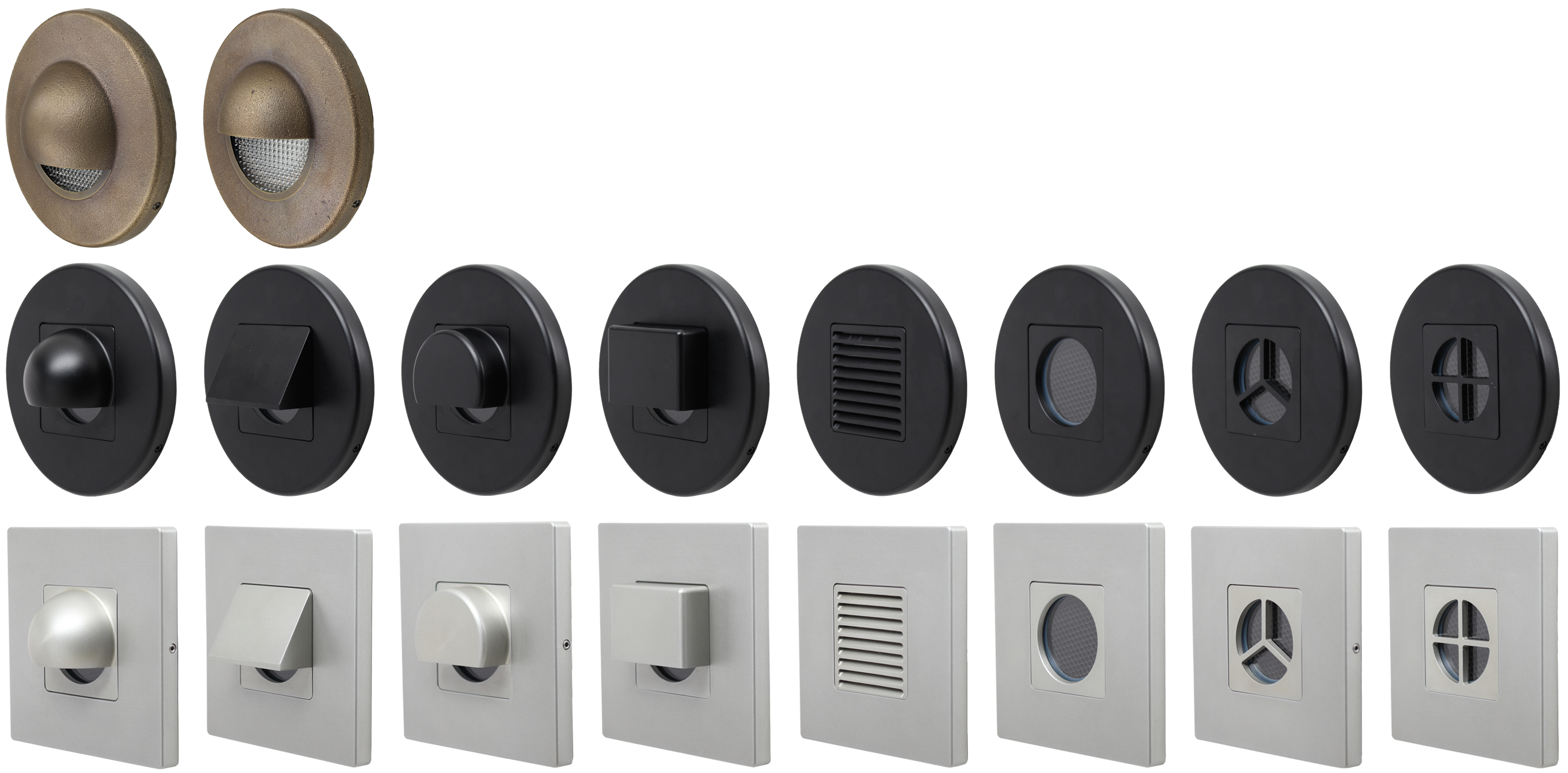

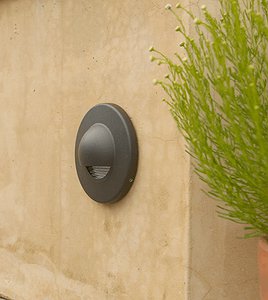

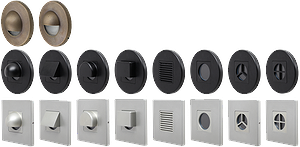

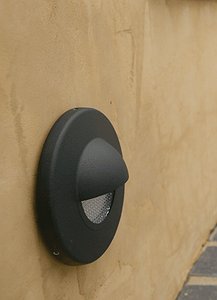

  • Covers available in round and square shapes and come with hardware concealed on the sides to provide a clean, architectural appearance.
  • Machined covers and cutoffs come in multiple styles that can be interchanged and configured as desired.
  • Covers and cutoffs rotate so that glare can be better controlled on sloped walkways or steps and for final leveling alignment.
  • Tested and certified for wet location use in landscape mount applications.

  • WRITTEN SPECIFICATIONS

    Faceplate

    A 1/8” thick, tempered, lens is secured to the faceplate with a high temperature, UV curing, silicone adhesive for a water tight seal. Included gasket seals between faceplate and wall. Internal accessory lenses held in place by stainless steel clip. The faceplate has two Ø3/16” countersunk mounting holes (mounting hardware not included).

    Covers

    Cover is mounted over faceplate using three stainless steel set screws around the perimeter, allowing full rotational adjustment.

    Cast Covers: Cast covers available in aluminum or brass and come in two cutoffs. Can be specified with integral spread lens to allow maximum light distribution. Alternatively, can be specified without integral spread lens and internal lens accessories can be used.

    Machined Covers: Machined cosmetic covers and cutoffs available in aluminum, brass, or stainless steel and mount over aluminum faceplate. Each available in multiple styles that can be configured as desired.

    Body

    The machined 6061-T6 aluminum, black anodized body contains the Light Engine, attaches to the faceplate cap using one 18-8 stainless steel set screw, and is sealed with high temperature silicone O rings. The Body is supplied with 6’ of 16-2 cable. Cable exit is sealed with a polymer water tight strain relief fitting.

    Finish

    TGIC thermo-set polyester powder coat paint available in 14 standard colors. On aluminum model, finish is applied over a corrosion resistant, hexavalent chromium free, RoHS compliant coating. Aluminum model available in one additional metal finish: Clear Anodized. Brass model available in three additional metal finishes: Natural, Polished, and Aged. Stainless model available in three additional metal finishes: Natural, Polished, and Brushed.

    Socket

    GY-6.35 porcelain socket with 600V, 250°C, PTFE coated 18 ga leads (for MR16 Halogen and MR16 LED options).

    Light Engine

    Integral Driver COB LED: 13.5mm COB LED and integral low voltage driver allows for choice of light output (400lm, 700lm, or 1000lm), color temperature (2700K, 3000K, 3500K, 4000K), CRI (80, 90), and optics (15º, 24º, 36º, 55º, 65º). Integral LED driver features include: 12VAC input (+/- 10%), ELV and MLV phase dimming (contact V3 for dimmer compatibility), high power factor > 0.9, internal protection (short circuit, overload, thermal, auto-reset), and an L70 > 40,000 hrs. COB LED and driver components are field replaceable and upgradeable to simplify future repairs and upgrades.

    MR16 Halogen: 12V bi-pin up to 20W. Lamp supplied by others.

    Retrofit MR16 LED: 12V 7.5W (600lm) bi-pin retrofit Soraa™ MR16 LED lamp with specially engineered heat sink mount to ensure proper heat transfer to body. Note: Retrofit LED will overheat without supplied heat sink mount.

    Certification

    CSA tested & certified to US and Canadian safety standards for the following application(s):

    Wet location wall mount use (UL1598):
    PA3 - LED or 20W Max. MR16 Halogen lamp.

    Caution! - PA3 can not be used in contact with combustible surfaces or thermal insulation when using the MR16 Halogen lamp.

    All ratings subject to change without notice. See website or contact V3 for most current info.
