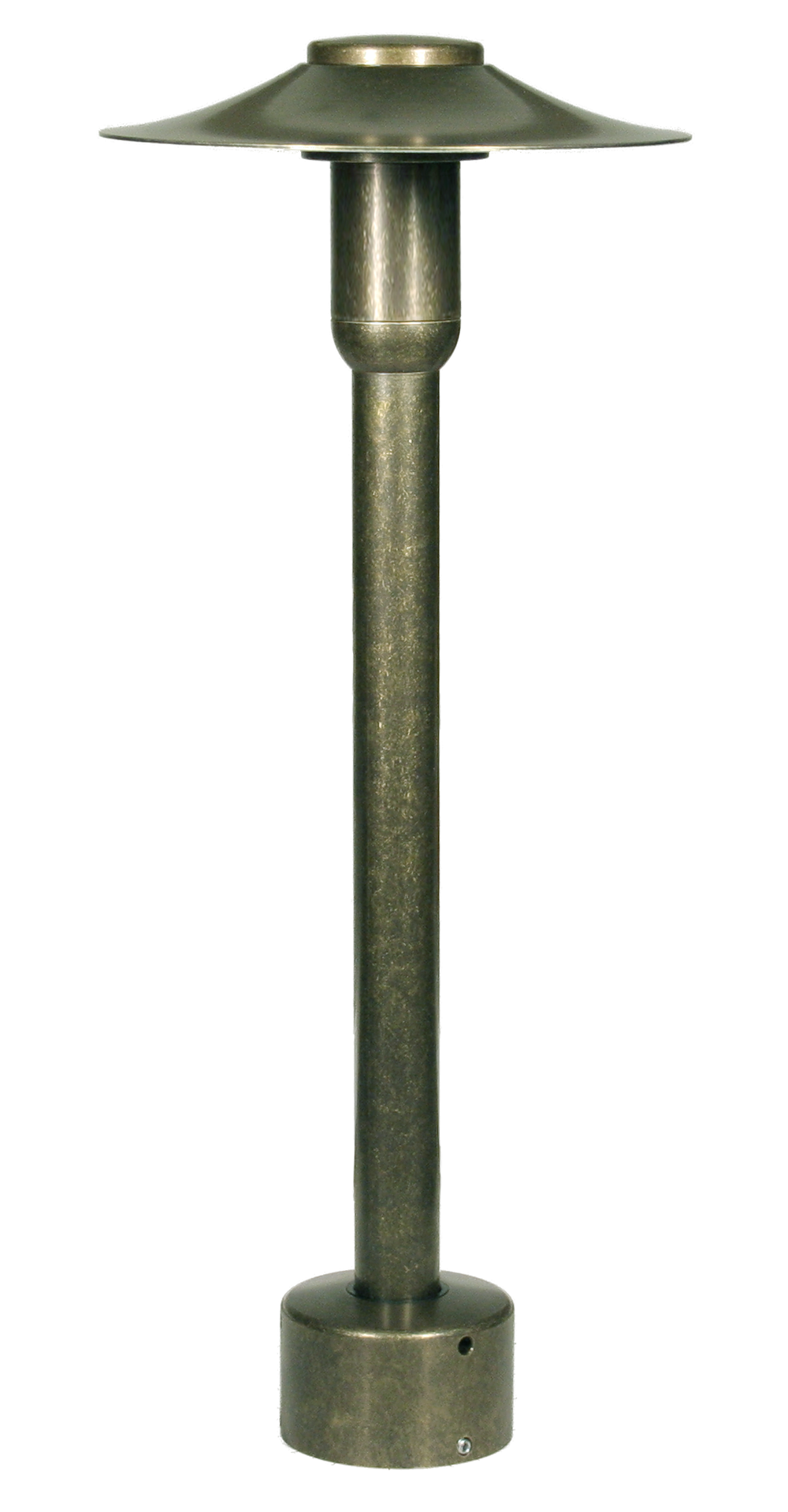

PA1 Path Light

Construction:

Aluminum, brass, or stainless steel with 18-8 stainless steel hardware. Also available with copper shade (all other components brass).

Stem:

Stems machined from 6061-T6 aluminum, C36000 brass, or 304 stainless steel and are available in lengths of 6”, 12”, 18”, 24”, 30”, 36”, 42” and 48”.

Finish:

TGIC thermo set polyester powder coat paint available in 14 standard colors. On aluminum model, finish is applied over a corrosion resistant, hexavalent chromium free, RoHS compliant coating. Aluminum model available in one additional metal finish: Clear Anodized. Brass model available in three additional metal finishes: Natural, Polished, and Aged. Stainless steel model available in three additional metal finishes: Natural, Polished, and Brushed. Copper model available in Natural finish only.

Lens:

1/8” wall tempered borosilicate tube, secured to cap with a high temperature, UV curing silicone adhesive. Available with clear or frosted finish.

Lamp:

Integral LED: 12 VAC, 4W LED module with integral driver. LED module features patented LEDSense® thermal management, an input voltage range of 9.6 to 14.4 VAC, an L70 of 60,000 hrs., a CRI > 80, and compatibility with magnetic and low load electronic transformers (see Transformer Compatibility List). Note: LED is not dimmable. LED module is not field replaceable.

T3 Bi-pin LED: 12 VAC/DC, 3W (330lm) T3 LED with an input range of 9 to 15 VAC/DC, a CRI > 80, field replaceable, has a rated life span of 25,000 hrs, dimmable, and compatible with magnetic and low load electronic transformers (see LED specification sheet for transformer and dimmer compatibility information).

Electrical:

Supplied standard with 24” of 16-2 cable beyond stem for connection to a remote low voltage power supply. Also available with integral 120V, 60VA low load electronic transformer in certain mount options.

Certification:

CSA tested & certified to US and Canadian safety standards for wet location landscape use per UL1838 and UL1598.
