WM7 LED Dual Wall Mount

LED Dual Wall Mount

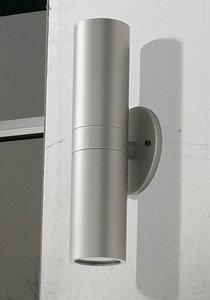

Precision machined dual LED lighting fixture with 100-277V input integral drivers. Can be used for wet or dry location wall mounted lighting applications.

  • Body and cap available in round and square (aluminum only) shapes.
  • Thick walled cap and optimized high temperature silicone O-ring placement prevents leaking.
  • ADA compliant with flat canopy mount options.
  • Thick walled cap allows for more threads and larger set screw to prevent stripping.

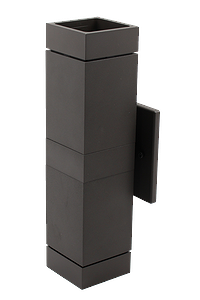

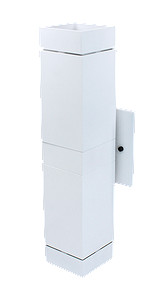

  • Round & square shape options.
  • LED modules feature field replaceable optics for changing beam patterns.
  • LED drivers utilize patented LEDSense® thermal management to keep LED's running at the optimum temperature.


    Available in machined 6061-T6 aluminum or C36000 brass with 18-8 stainless steel hardware.


    Each cap contains a 1/8” thick tempered, clear lens, secured with a high temperature, UV curing, silicone adhesive.


    Machined caps lock in place with 18-8 stainless steel set screws, and are sealed to the body with a high temperature silicone O-ring. Round C2 & C4 caps have drain holes for water drainage from top of lens. Square caps feature removable and field interchangeable cutoffs with ‘flow-through’ design for 360º drainage with no light leak.

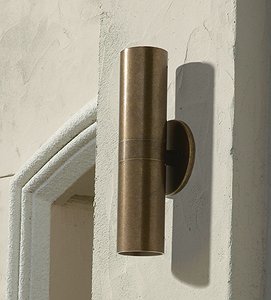

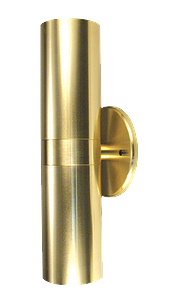

    TGIC thermo set polyester powder coat paint available in 14 standard colors. On aluminum model, finish is applied over a corrosion resistant, hexavalent chromium free, RoHS compliant coating. Aluminum model available in one additional metal finish: Clear Anodized. Brass model available in three additional metal finishes: Natural, Polished, and Aged.

    Mount Canopy:

    Available with the following mount options: MO3 (Machined Round Canopy), MO15 (Machined Square Canopy), and MO12 & MO13 (Surface Mount Canopies). Stem is permanently attached to the mount canopy to prevent loosening. MO3 & MO15 mount options come mounted to a steel universal mounting ring for ease of mounting and adjustment on an industry standard round junction box. See mount specification sheets for more information. (Mount canopy must be mounted to an appropriate wall or junction box, in such a manner that is capable of holding the weight of the fixture. Junction box and hardware not included).


    Dual LED’s with 100 to 277 VAC (50/60 Hz) input and 20W max. power each (17W@120V, 20W@277V). Each LED features: integral driver, up to 1280 lumen output, up to 75 lm/W efficacy, four different beam patterns (15º, 23º, 35º & 51º), field changeable optics, push button selection of 4 light levels (100%, 80%, 55% & 18%), 120-277V universal 0-10V dimming available at three highest (100%, 80%, 55%) light level settings, 120V phase dimming at highest (100%) light level setting (see Dimmer Compatibility List), an L70 of 60,000 hrs., and patented LEDSense® thermal management to ensure reliability and lumen maintenance. Note: thermal management system may cause power input and light output to vary slightly depending on fixture material, orientation, lens accessories, mounting, and ambient temperature.


    CSA tested & certified to US and Canadian safety standards for wet location wall mount use (UL1598).
