PA5 Step Light

Step Light

Precision cast and machined lighting fixture for MR16 halogen lamps or integral LED lamp module with driver. Can be used for step lighting, path lighting, or area lighting applications. Cast Box mount option ideal for concrete pour installations, while Octagonal Box mount option is perfect for use on industry standard sheet metal octagonal boxes.

  • Cast Box and Octagonal Box mounting options.
  • Cast and machined covers with hardware concealed on the sides provides a clean, architectural appearance.
  • Cast faceplate available with large 2 1/2" diameter spread lens to provide efficient, even distribution of light. In many installations, lower wattage lamps can be utilized for reduced energy use. Alternatively, cast faceplate can be specified without integral spread lens to allow flexibility of using internal lens assembly.
  • Cover and cutoffs rotate so that glare can be better controlled on sloped walkways or steps and for final leveling alignment.
  • LED modules are field replaceable and feature replaceable lenses.
  • LED drivers utilize dynamic transformer recognition to simplify installation and patented LEDSense® thermal management to keep LED running at the optimum temperature.
  • WRITTEN SPECIFICATIONS

    Faceplate:

    A 1/8” thick, tempered, lens is secured to the faceplate with a high temperature, UV curing, silicone adhesive for a water tight seal. Included gasket seals between faceplate and wall. Internal accessory lenses held in place by stainless steel clip.

    Socket:

    GY-6.35 porcelain socket with 600V, 250°C, PTFE coated 18 ga leads.

    Mount Style:

    Cast Box: Comes with faceplate mounted to an industry standard 4” round cast aluminum box and extension. Can be used with either halogen or LED lamp options and up to two lens accessories.

    Octagonal Box: For mounting to industry standard 4” sheet metal octagonal boxes (box & hardware not included). See drawing at left to make sure the proper depth of box is used. Can only be used with Integral LED lamp options and one lens accessory.

    Finish:

    TGIC thermo set polyester powder coat paint available in 14 standard colors. On aluminum model, finish is applied over a corrosion resistant, hexavalent chromium free, RoHS compliant coating. Aluminum model available in one additional metal finish: Clear Anodized. Brass model available in three additional metal finishes: Natural, Polished, and Aged. Stainless model available in three additional metal finishes: Natural, Polished, and Brushed.

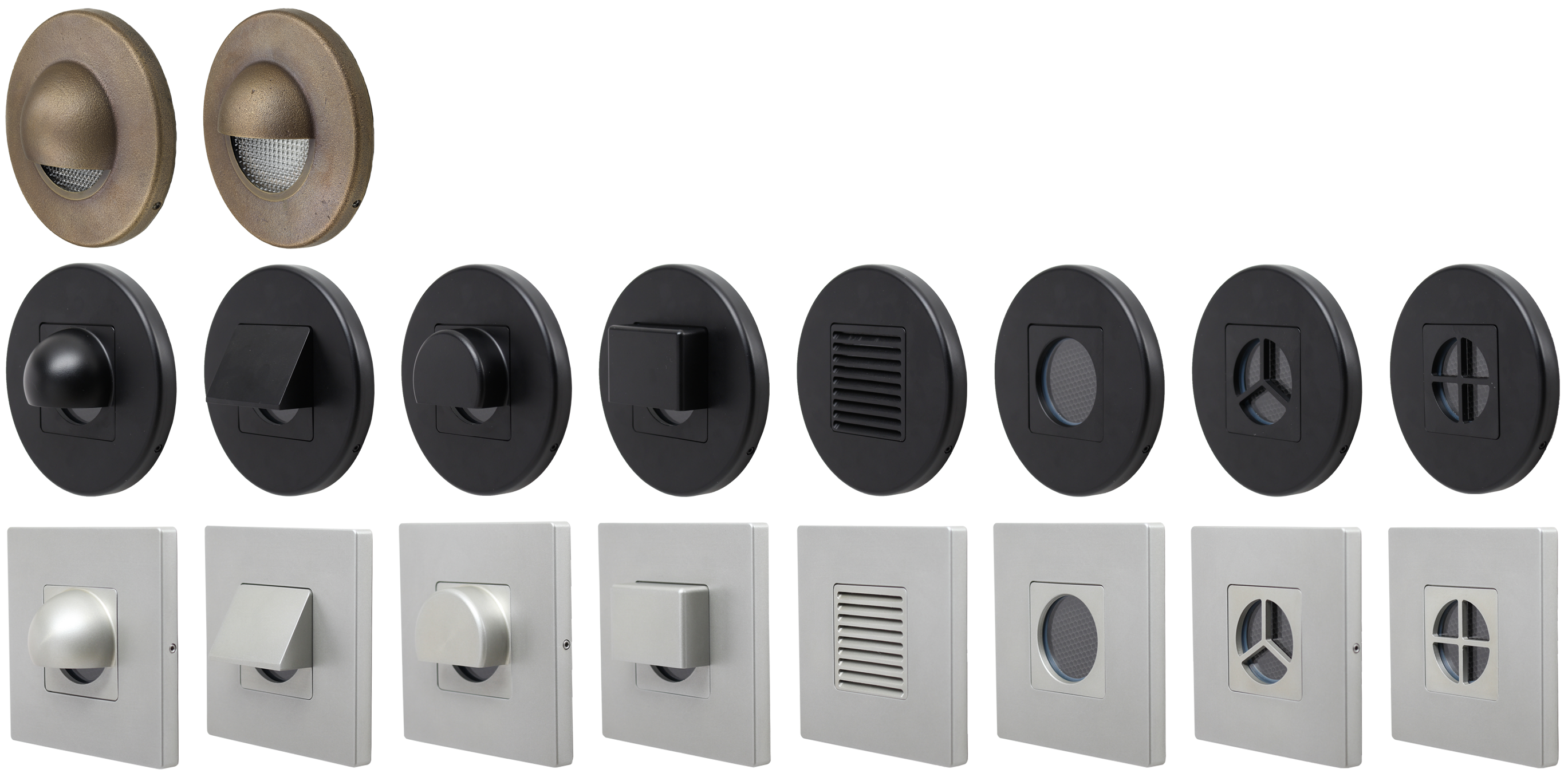

    Covers:

    Cover is mounted to faceplate using three stainless steel set screws around the perimeter, allowing full rotational adjustment.

    Cast Covers: Cast covers available in aluminum or brass and come in two cutoffs. Can be specified with integral spread lens to allow maximum light output and distribution. Alternatively, can be specified without integral spread lens and internal lens accessories can be used.

    Machined Covers: Machined cosmetic covers and cutoffs available in aluminum, brass, or stainless steel and mount over aluminum faceplate. Each available in multiple styles that can be configured as desired.

    Lamps:

    MR16 Halogen: 12V bi-pin up to 20W (See Certification heading).

    Integral LED: 12-24V AC/DC 6W (400lm) or 12V AC/DC 10W (700lm) LED options include integral driver with High/Low switch for 35W/20W (6W) or 50W/35W (10W) halogen equivalent outputs. LED Modules are field replaceable and feature replaceable lenses, an L70 > 60,000 hrs., dynamic transformer recognition, phase dimming (see Transformer and Dimmer Compatibility List), and patented LEDSense® thermal management.

    Retrofit MR16 LED: 12V 7.5W (600lm) bi-pin retrofit Soraa™ MR16 LED lamp with specially engineered heat sink mount to ensure proper heat transfer to body. Note: Retrofit LED will overheat without supplied heat sink mount.

    Certification:

    CSA tested & certified to for wet location wall mount use (UL1598):
    PA5 - LED or 20W Max. MR16 Halogen lamp.
    For MR16 halogen versions: Not for use in contact with combustible materials or thermal insulation. Power supply wires and wire connectors must be rated for 105°C minimum.
    For Octagonal Box (OB) mount versions: Power supply wires and wire connectors must be rated for 90°C minimum.
