IG2 MR16 In Ground Up Light

MR16 In Ground Up Light

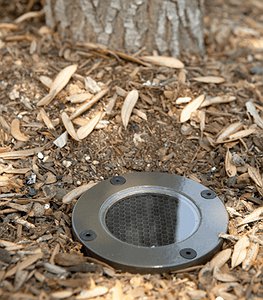

Precision machined LED lighting fixture with 12V input LED Light Engine (COB with integrated driver module). Modular industry standard components allow for simple field replacement and future upgrade. Designed for in ground wet location installation for up lighting trees, landscapes, or any vertical hardscape / architectural surface.

  • Pour collar option allows for easy installation in concrete pour installations.
  • Flush lens design reduces mineral deposits on lens surface.
  • Thick walled cap and optimized high temperature silicone O-ring placement prevents leaking.
  • Compression connector at wire entry creates water tight lamp compartment.
  • Industry standard COB LED components used to simplify maintenance and future upgrades.
  • Field replaceable internal components and connectors on wiring connections for easy installation and maintenance.

  • WRITTEN SPECIFICATIONS

    Lamp Holder:

    Machined 6061-T6 aluminum, C36000 brass, or 304 stainless steel faceplate and optional pour collar mounts to the housing with 18-8 stainless steel hardware. The faceplate is attached to a machined 6061-T6 aluminum, black anodized body using one 18-8 stainless steel set screw, and sealed with a high temperature silicone O-ring. The faceplate accepts two internal accessories, held in place by a stainless steel clip. Body is supplied with 6’ of cable. Cable exit sealed with a water tight strain relief fitting.

    Lamps:

    COB LED w/ Integral Driver: 13.5mm COB LED and integral low voltage driver allows for choice of light output (400lm, 700lm, or 1000lm), color temperature (2700K, 3000K, 3500K, 4000K), CRI (80, 90), and optics (15º, 24º, 36º, 55º, 65º). Integral LED driver features include: 12VAC input (+/- 10%), ELV and MLV phase dimming (contact V3 for dimmer compatibility), high power factor (> 0.9), internal protection (short circuit, overload, thermal, auto-reset), and an L70 > 40,000 hrs. COB LED and driver components are field replaceable and upgradeable to simplify future repairs and upgrades.

    Retrofit MR16 LED: 12V 7.5W (600lm) bi-pin retrofit Soraa™ MR16 LED lamp with specially engineered heat sink mount to ensure proper heat transfer to body. Note: Retrofit LED will overheat without supplied heat sink mount.

    MR16 Halogen: 12V bi-pin up to 20W (See Certification heading).

    Housing:

    Machined 6061-T6 aluminum housing, coated with black TGIC thermo set polyester powder coat paint, applied over a corrosion resistant chromate conversion coating.

    Finish:

    Faceplate and optional pour collar available with TGIC thermo set polyester powder coat paint in 14 standard colors. On aluminum model, finish is applied over a corrosion resistant, hexavalent chromium free, RoHS compliant coating. Aluminum model available in one additional metal faceplate finish: Clear Anodized. Brass model available in three additional metal faceplate finishes: Natural, Polished, and Aged. Stainless steel model available in three additional metal faceplate finishes: Natural, Polished, and Brushed.

    Lens:

    Tempered, clear lens, secured to faceplate with a high temperature, UV curing, silicone adhesive.

    Socket:

    GY-6.35 porcelain socket with 600V, 250°C, PTFE coated 18 ga leads (for MR16 Halogen and Retrofit MR16 LED options).

    Certification:

    CSA tested & certified to US and Canadian safety standards for the following applications:

    Wet location landscape use (UL1838):
    IG2 - 20W Max. MR16 Halogen lamp.
    LED options can be used in all models and applications.
