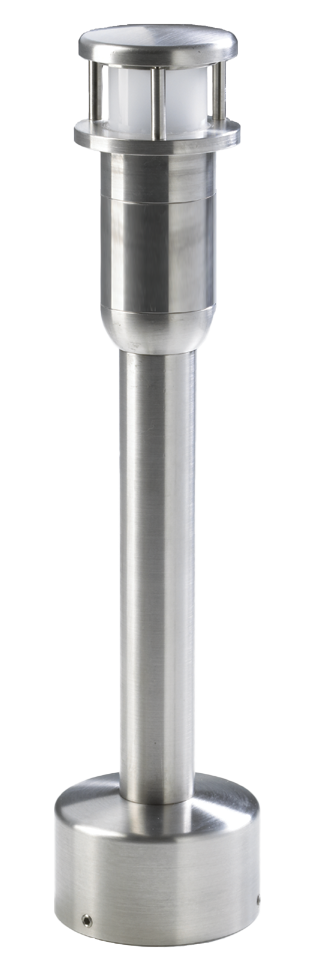

PA2
Precision machined aluminum, brass, or stainless steel LED marker light fixture with Integral Driver COB LED light engine and 12V or 120V mount options. Modular industry standard components allow for simple field replacement and future upgrades. Wet location capable and certified for landscape applications, the PA2 Marker Light is perfect for all residential, commercial, retail, and hospitality uses.
- Industry standard COB LED components and wiring connectors used to simplify maintenance and future upgrades.
- Field replaceable COB and driver.
- Available with various surface or landscape mount and voltage options.
- Top can be configured with various cap, lens, and opening styles.
- T3/T4 halogen and retro-fit T3 LED lamp options also available.
- Stems available up to 48”. Adjustable version allows for range of heights from 3" to 48".
- Tested and certified for wet location use in landscape mount applications.
-
Product Details
WRITTEN SPECIFICATIONS
Material
6061-T6 aluminum, C36000 brass, or 304 stainless steel with 18-8 stainless steel hardware.
Stem
Machined stems available in lengths of 3", 6", 12", 18", 24", 30", 36", 42" and 48".
Finish
TGIC thermo set polyester powder coat paint available in 14 standard colors. On aluminum model, finish is applied over a corrosion resistant, hexavalent chromium free, RoHS compliant coating. Aluminum model available in one additional metal finish: Clear Anodized. Brass model available in three additional metal finishes: Natural, Polished, and Aged. Stainless steel model available in three additional metal finishes: Natural, Polished, and Brushed.
Lens
1/8” wall borosilicate tube, secured to cap with a high temperature, UV curing silicone adhesive. Available with clear or frosted finish.
Light Engine
Integral Driver COB LED: 13.5mm COB LED and integral low voltage driver allows for choice of light output (400lm, 700lm, or 1000lm), color temperature (2700K, 3000K, 3500K, 4000K), and CRI (80, 90). Integral LED driver features include: 12VAC input (+/- 10%), ELV and MLV phase dimming (contact V3 for dimmer compatibility), high power factor > 0.9, internal protection (short circuit, overload, thermal, auto-reset), and an L70 > 40,000 hrs. COB LED and driver components are field replaceable and upgradeable to simplify future repairs and upgrades.
T3 Bi-pin LED: 12 VAC/DC, 3W (330lm) T3 LED with an input range of 9 to 15 VAC/DC, a CRI > 80, field replaceable, has a rated life span of 25,000 hrs, dimmable, and compatible with magnetic and low load electronic transformers (see LED specification sheet for transformer and dimmer compatibility information).
Electrical
Supplied standard with 24” of 16-2 cable beyond stem for connection to a remote low voltage power supply. Also available with integral 120V, 60VA low load electronic transformer in certain mount options.
Certification
CSA tested & certified to US and Canadian safety standards for wet location landscape use per UL1838 and UL1598.
Integral Driver COB LED:
PA2(A or B) - All LE2 options available.
PA2S - LE2-0400 option only.All ratings subject to change without notice. See website or contact V3 for most current info.
-
